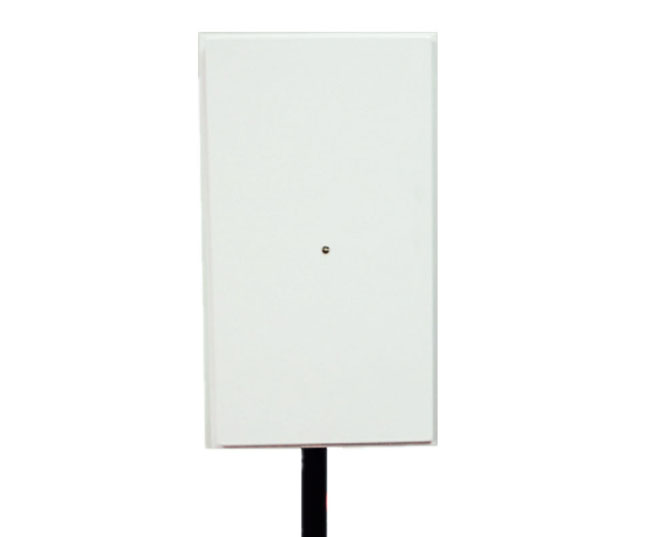

SM-9288 is compatible with few protocol, easy to carry, high speed of the reading, multiple card reading,circular polarization antenna and waterproof.
Product Features:
1. Integrated, high performance 10dBi vertical antenna ensure long-range reading& writing and easy install
2. Multi-protocol support: ISO 18000-6C(EPC Gen2)
3. Super anti-interference ability for its FHSS frequency working method;
4. Software with different Programming language allows easy upgrade;
5. Waterproof and sunshine defending, idea for outdoor applications;
6. All kinds of communication interfaces and customizing is available too.
Application：
1. Intelligent traffic such as ETC;
2. Custom border-crossing;
3. Parking lot,Automatic weighting;
4.Logistics such as container management,Pallet management;
5.Asset tracing;
6.Ticketing and access control system;
Product Parameters:
Performance parameters | |
Item No. | |
SM-9288A | RS232,RS485,Wiegand |
SM-9288B | RS232,TCP/IP,Wiegand |
SM-9288G | RS232,GPRS,Wiegand |
SM-9288W | RS232,WIFI,Wiegand |
Performance parameters | |
Working Frequency | 902~928 MHz or 865~868MHz |
Chip | Impinj R2000 |
Protocol | ISO18000-6C(EPC G2)or ISO-18000-6B |
Development kit | Provide SDK and C#,VC,VB,Java，Delphi development routines |
Software | Provide reading/writing DEMO software |
Antenna gain | 10dBi circular polarization |
Reading range | stable reading range12-15M(Depends on tag&environment) |
Antenna power | 1W(adjustable by software) |
Input/output interface | 1way trigger input or 2 way relay output(customized) |
Anti-thunder | 6000V |
Working temperature | -40℃~+65℃ |
Storage temperature | -45℃~+95℃ |
Power | DC-9V,3A |
Dimension | 420*240*30MM |
Net weight | 2.5Kg |

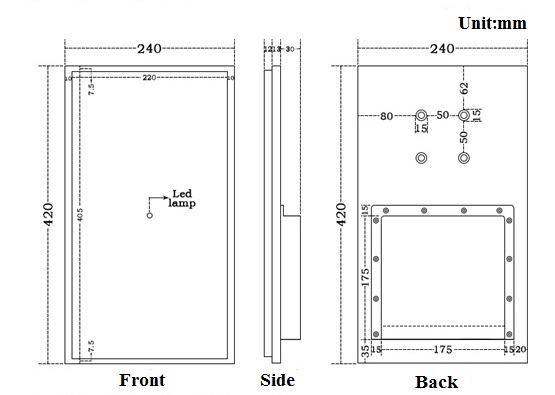

Size：
